Popular Diesel Engine Specs

ADE 422, ADE 423 and ADE 424 Essential Diesel Engine Bolt Tightening Torques


ADE422 ADE423 ADE424
Main Bearing Bolt torques
step 1 = 300 Nm
step 2 = + 90-100°


Click for:
ADE422, ADE423, ADE424 Engine
Specs, manuals, bolt torques

ADE422 ADE423 ADE424
Connecting Rod Bolt torques
step 1 = 100 Nm
step 2 = + 90-100°


Click for:
ADE422, ADE423, ADE424 Engine
Specs, manuals, bolt torques

ADE422 ADE423 ADE424
Cylinder head Bolt torques
step 1 = 140 Nm
step 2 = + 90-100°


Click for:
ADE422, ADE423, ADE424 Engine
Specs, manuals, bolt torques


ADE 422, ADE 423 and ADE 424 Diesel Engine workshop repair Manuals


Engine Designations
German - English
A = Turbocharger = T
L = Intercooler = I
OM = Diesel engine = ADE

e.g
OM422LA = ADE422TI


Click for:
ADE Engine and
Mercedes OM Engine
Specs, manuals, bolt torques


ADE 422, ADE 423 ADE 424 Diesel Engine Specs


ADE422, ADE422T, ADE422TI
Engine Arrangements

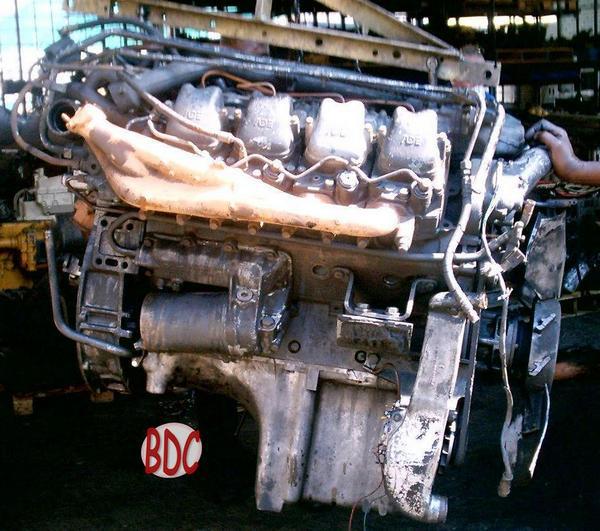

ADE422
Engine Arrangement
v8 engine
4-stroke cycle
Naturally aspirated

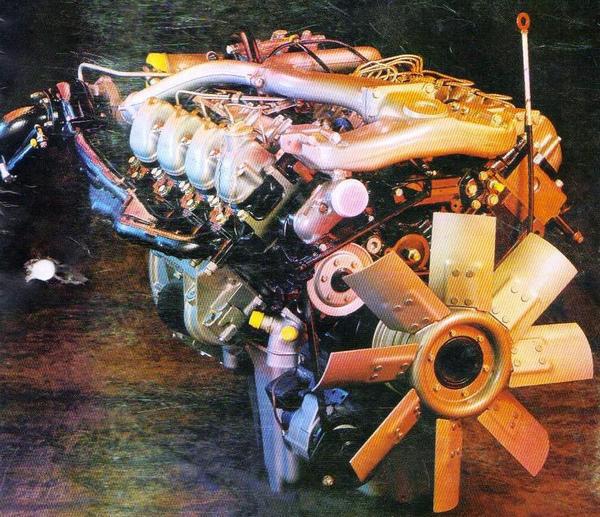

ADE422T
Engine Arrangement
v8 engine
4-stroke cycle
Turbocharged

ADE422TI
Engine Arrangement
v8 engine
4-stroke cycle
Turbocharged
Intercooled


Click for:
ADE422, ADE423, ADE424 Engine
Specs, manuals, bolt torques

ADE423, ADE423T, ADE423TI
Engine Arrangements

ADE423
Engine Arrangement
v10 engine
4-stroke cycle
Naturally aspirated

ADE423T
Engine Arrangement
v10 engine
4-stroke cycle
Turbocharged

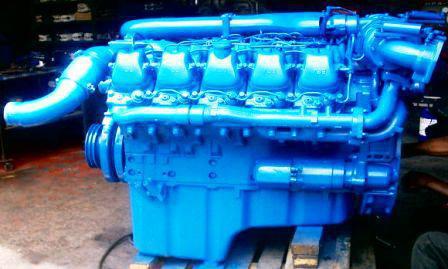

ADE423TI
Engine Arrangement
v10 engine
4-stroke cycle
Turbocharged
Intercooled


Click for:
ADE422, ADE423, ADE424 Engine
Specs, manuals, bolt torques

ADE424, ADE424T, ADE424TI
Engine Arrangements

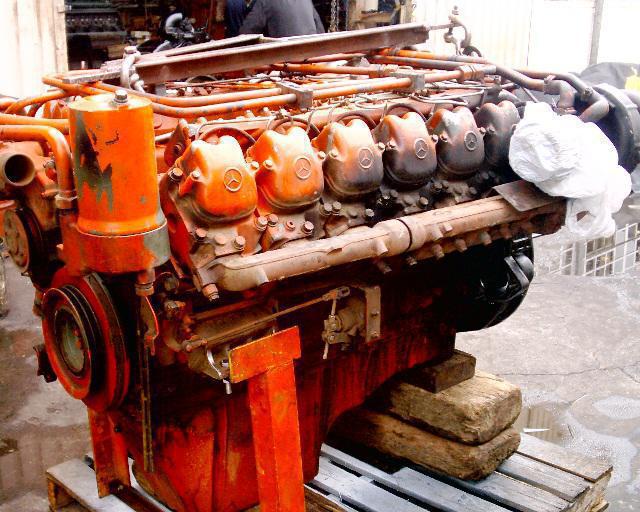

ADE424
Engine Arrangement
v12 engine
4-stroke cycle
Naturally aspirated

ADE424T
Engine Arrangement
v12 engine
4-stroke cycle
Turbocharged

ADE424TI
Engine Arrangement
v12 engine
4-stroke cycle
Turbocharged
Intercooled


Click for:
ADE422, ADE423, ADE424 Engine
Specs, manuals, bolt torques


ADE424, ADE424T, ADE424TI
Engine, Displacement, Bore, Stroke,
Compression Ratio

Displacement
ade422 - 14.6 liter
ade423 - 18.3 liter
ade424 - 21.9 liter

Compression ratio:
Naturally asprirted = 16.9:1
Turbocharged = 16.25:1

Bore
128.00 mm

Stroke
142.00 mm


Click for:
ADE422, ADE423, ADE424 Engine
Specs, manuals, bolt torques

ADE424, ADE424T, ADE424TI
Engine Power and Torque

Power
ade422 - 202 kW, 275 hp @ 2300 rpm
ade422T - 243 kW, 326 hp @ 2300 rpm
ade423 - 256 kW, 343 hp @ 2300 rpm
ade423T - 300 kW, 402 hp @ 2300 rpm
ade424 - 289 kW, 388 hp @ 2300 rpm
ade424T - 412 kW, 552 hp @ 2300 rpm

Torque
ade422 - 1022 Nm @ 1200 rpm
ade422T - 1402 Nm, 1200 lb.ft @ 1200 rpm
ade423 - 1278 Nm, 943 lb.ft @ 1200 rpm
ade423T - 1687 Nm, 1244 lb.ft @ 1200 rpm
ade424 - 1388 Nm, 1024 lb.ft @ 1200 rpm
ade424T - 2236 Nm, 1649 lb.ft @ 1200 rpm


Click for:
ADE422, ADE423, ADE424 Engine
Specs, manuals, bolt torques


ADE424, ADE424T, ADE424TI
Engine Weight and Dimensions

Weight approx:
ade422 - 815 kg
ade422T - 865 kg
ade423 - 965 kg
ade423T - 1020 kg
ade424 - 1115 kg
ade424T - 1165 kg


Click for:
ADE422, ADE423, ADE424 Engine
Specs, manuals, bolt torques

Dimensions approx: ade multi engine dimensions image
Engine Designations
German - English
A = Turbocharger = T
L = Intercooler = I
OM = Diesel engine = ADE

e.g
OM422LA = ADE422TI


Click for:
ADE Engine and
Mercedes OM Engine
Specs, manuals, bolt torques
