EMD 710 Engine specifications and manuals


Inter Club Navigation
home image Home Page
   Contact Us
  engine outline Engine List    Technical   video indicatorVideos  logo ball Engine Components
We provide diesel engine manuals, bolt torques, specs
... Read More
Your Diesel Engine Specs

Basic specs are open to everyone and include images, displacement, dimensions and weight, essential bolt tightening torques, the characteristics of the engine like its power and torque.
Essential bolt tightening torques are the main bearing cap bolt torque, the connecting rod cap bolt torque and the cylinder head bolt torques.


Some Popular Engine Specs

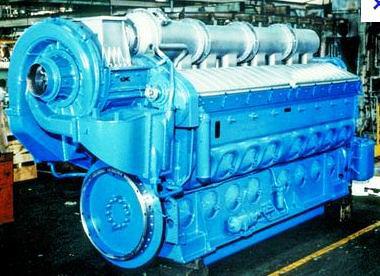

EMD 710 engine specs, bolt torques and manuals

EMD 710 Workshop Repair Manual, EMD 710 Tools Manual

EMD 710 Essential Bolt torques

EMD 710 main bearing
bolt torques
750 lb.ft, 1017 Nm

EMD 710 Con Rod -
to Piston Pin bolt torque
450 lb.ft, 610 Nm

Cyl Head -
Liner stud nuts
240 lb.ft, 325 Nm

Cyl Head -
Crab nuts
Initial step = 542 Nm; 400 lb.ft
Final step = 3 254 Nm; 2400 lb.ft

EMD 710 engine, Key Specs

EMD 710 bore and stroke
bore = 9 1/16 in, 230.19 mm
stroke = 11.0 in, 279.4 mm

EMD 710 Displacement
- Displacement per cylinder =
11,635 liter, 710 CID

8 cyl = 93.0 liter, 5 680 CID

12 cyl = 139.6 liter, 8 520 CID

16 cyl = 186.1 liter, 11 360 CID

20 cyl = 232.7 liter, 14 200 CID


EMD 710 compression ratio
compression ratio = 18.0:1

EMD 710 firing orders:
Rotation (facing rear end) - Counterclockwise

8 cylinder = 1,5,3,7,4,8,2,6

12 cylinder = 1,12,7,4,3,10,9,5,2,11,8,6

12N cylinder = 1,7,4,10,2,8,6,12,3,9,5,11

16 cylinder = 1,8,9,16,3,6,11,14,4,5,12,13,2,7,10,15

20 cylinder = 1,19,8,11,5,18,7,15,2,17,10,12,3,20,6,13,4,16,9,14

EMD 710 engine arrangement: emd 710-16 engine arrangement

EMD 8 firing order
EMD 710-8 firing order
EMD 12 firing order
EMD 710-12 firing order
EMD 8 firing order
EMD 710-16 firing order
EMD 8 firing order
EMD 710-20 firing order

EMD 710 Dimensions and Weight
length - including air filter & cooling system
8 cyl length = 20 foot 4 inches; 6,202 mm
12 cyl length = 23 foot 7 inches; 7,178 mm
16 cyl length = 26 foot 10 inches; 8,171 mm
20 cyl length = 29 foot 7 inches; 9,015 mm

width - all
width = 5 foot 8 inches; 1,714 mm

height
8 cyl height = 9 ft 0 in; 2,734 mm
12 cyl height = 9 ft 6 in; 2,886 mm
16 cyl height = 9 ft 6 in; 2,886 mm
20 cyl height = 10 ft 2 in; 3089 mm

weight
8 cyl = 22,050 lb; 10,002 kg
12 cyl = 23,306 lb; 12,839 kg
16 cyl = 36,425 lb; 16,522 kg
20 cyl = 43,091 lb; 19,545 kg
