Mitsubishi 6D14 6D15 6D16 bolt torques, manuals and specifications

Mitsubishi 6D14 6D15 6D16 essential bolt torques

Main Bearing Bolts
Step 1 = 67 Nm, 50 lb.ft
Step 2 = + 90°

Connecting Rod Bolts
Step 1 = 29 Nm, 22 lb.ft
Step 2 = + 90° ± 5°

Cylinder head Bolts
M14 bolts
Step 1 = 78 Nm, 58 lb.ft
Step 2 = + 180°

M10 bolts
Step 1 = 17 Nm, 13 lb.ft
Step 2 = 34 Nm, 26 lb.ft

Mitsubishi 6D14 6D15 6D16 Workshop Manual

Mitsubishi 6D14 6D15 6D16 Workshop Manual p1 of 335
Mitsubishi 6D14 6D15 6D16 Workshop Manual
335 pages

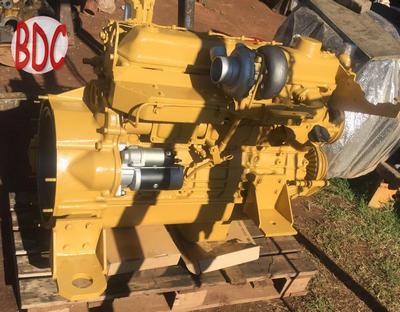

Mitsubishi 6D14 6D15 6D16 specs

Mitsubishi
Displacement
6D14 - 6.557 liter
6D15 - 6.819 liter
6D16 - 7.545 liter

Bore
6D14 - 110 mm
6D15 - 113 mm
6D16 - 118 mm

Stroke
6D14 - 115 mm
6D15 - 115 mm
6D16 - 115 mm


Arrangement
6D14
in-line 6 cylinder
natural aspiration

6D14T
in-line 6 cylinder
turbocharged

6D15T
in-line 6 cylinder
turbocharged

6D16
in-line 6 cylinder
natural aspiration

6D16T
in-line 6 cylinder
turbocharged

Power
6D14
up to 92 Kw, 123 hp
@ 2800 rpm

6D14T
up to 126 Kw, 168 hp
@ 2800 rpm

6D16
up to 120 Kw, 161 hp
@ 2800 rpm

6D16T
up to 151 Kw, 203 hp
@ 2800 rpm




Weight:
approx:
6D14 - 500 Kg
6D14T - 540 Kg
6D15T - 540 Kg
6D16 - 550 Kg
6D16T -560 Kg

Compression ratio:
6D14 - 17.5:1
6D14T - 16.0:1
6D15T - 16.0:1
6D16 - 17.5:1
6D16T -16.0:1
6D16TLE - 17.5:1
