MTU 4000 bolt torques, specs, manuals, spec sheets

MTU 4000 essential bolt tightening torques

Warning: Read manuals for correct procedures!
MTU 4000 main bearing caps
Lateral socket-head screws :
Step 1 = 80 Nm
Step 2 = 280 Nm +20 Nm

MTU 4000 Con Rod
step 1 = Tighten 25 Nm
step 2 = Pretightening torque 240 Nm +20 Nm
step 3 = Additional angle of rotation 90° +10°
step 4 = Checking torque 450 Nm

Cyl Head
step 1 = Tighten 25 Nm
step 2 = Pretightening torque 180 Nm +10 Nm
step 3 = Additional angle of rotation 180° +10°
step 4 = Checking torque 400 Nm


MTU 4000 manuals and spec sheets

MTU 12v4000 spec sheet p1
MTU 12v4000 gen set spec sheet
p1 of 6 pages
click to download
image - MTU 16v4000 operating instructions p1
16v4000
operating instructions p1 of 140 pages
click to download
image - MTU 12v 16v4000 operating instructions p1
12v and 16v4000
operating instructions
p1 of 287 pages
click to download
image - mtu 4000 technician fuel system guide p1
mtu 4000 engine
technician fuel system guide
p1 of 134 pages
click to download
MTU 4000 workshop manual p1
MTU 4000 12v and 16v
workshop manual
p1 of 1846 pages
click to download
MTU 4000 workshop manual p1
MTU 4000 workshop manual
12V 4000 Gx0; Gx1 16V 4000 Gx0/Gx1
p1 of 533 pages
click to download

MTU Motor Series 4000 - Manuales Españoles

image - mtu 4000 engine course p1
mtu 4000 Por supuesto motor
Español solamente p1 de 229 páginas
clic aquí para descargar

MTU 4000 key specs

Abbreviations

Frequent abbreviations you will encounter
in MTU manuals and literature:

KGS - Kraftgegenseite - (Engine free end)

KS - Kraftseite - (Engine driving end)

OT - Oberer Totpunkt - (Top Dead Center)

MTU 4000 bore and stroke
bore = 165 mm
stroke = 190 mm

MTU 4000 Displacement
- Displacement per cylinder =
4.06 liter

8V4000 = 32.48 liter

12V4000 = 48.72 liter

16V4000 = 64.96 liter

20V4000 = 81.20 liter

MTU 4000 Cylinder designations
MTU use the DIN ISO 1204 specs in which
Left is defined as A
and Right is defined as B.

Sides are viewed from the driving end, or 'KS' in the ISO specs;
this means as viewed from the flywheel.

Numbering cylinders begins from the flywheel end starting with
A1 = Left 1; and B1 = Right 1.

MTU 4000 firing orders:
Rotation (facing rear end) - Counterclockwise

8V = A1-B4-A4-A2-B3-A3-B2-B1
12V = A1-B2-A5-B4-A3-B1-A6-B5-A2-B3-A4-B6
16 V = A1-A7-B4-B6-A4-B8-A2-A8-
       B3-B5-A3-A5-B2-A6-B1-B7
20 V = A1-B5-A8-B7-A5-B2-A7-B10-A2-B3-
       A10-B6-A3-B4-A6-B9-A4-B1-A9-B8


MTU Series 4000 - Firing Orders and Cylinder Designations


MTU 4000 dimensions and weight

MTU 4000 Dimensions
 - approx guide - varies with every application,
 and can include accessories like marine
 coolers and so on:

length
8 cyl length = 2340 mm
12 cyl length = 3220 mm
16 cyl length = 3690 mm

width - all
8 cyl height = 1380 mm
12 cyl height = 1620 mm
16 cyl height = 1620 mm

height
8 cyl height = 1990 mm
12 cyl height = 1835 mm
16 cyl height = 1890 mm

image- mtu dimensions
MTU dimension sketch

MTU 4000 Weights
 - approx guide - varies with every application:

weight
 8 cyl = 4630 kg
12 cyl = 5134 kg
16 cyl = 6541 kg
20 cyl = 7640 kg



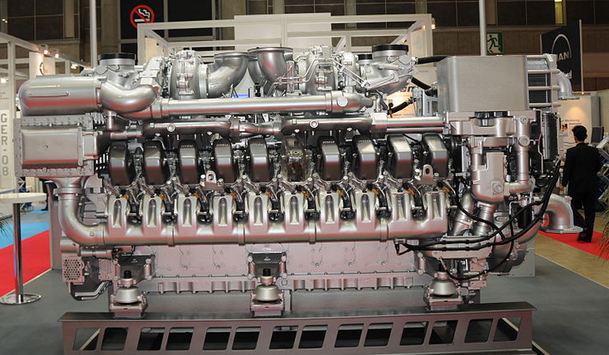

MTU 4000 Engine Images
